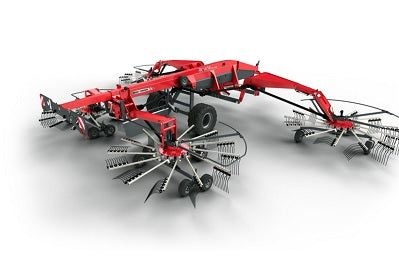

MF RK Series Hay Rakes

Massey Ferguson RK Series

High Performance Rotary Hay Rakes.

The Massey Ferguson RK Series hay rakes cover every farm size and operation - from the compact RK 341 DN (3.4m, 23 HP) for small tractors and hobby farms through to the large RK 1404 TRC PRO (up to 14.0m, 130 HP) for high-output commercial hay operations. Single-rotor models (RK 341 to RK 450) are ideal for smaller properties and tighter paddocks, while twin-rotor models (RK 662 through to RK 1404) deliver the wider working widths needed for larger volumes.

All models feature Cat I and II 3-point linkage mounting and 540 PTO rpm for broad tractor compatibility. Contact B&B Machinery in Toowoomba to enquire about Massey Ferguson hay rake pricing and current stock.

Key Features & Benefits

• 13 models covering working widths from 3.4m to 12.5m, from compact single rotor to large four-rotor rakes
• HP requirements from 23 HP (RK 341 DN) to 130 HP (RK 1404 TRC PRO) for maximum tractor compatibility
• Cat I and II 3-point linkage mounting and 540 PTO rpm across all models
• Single rotor models (RK 341 to RK 450): 3.4m–4.5m working widths suited to small tractors and tighter paddocks
• Twin rotor models (RK 662 to RK 1002): 5.8m–10.0m working widths for medium to large hay operations
• Four rotor models (RK 1254 and RK 1404): 12.5m–14.0m working widths for high-output commercial raking


The Massey Ferguson RK Series is available in 13 models across single rotor (RK 341 to RK 450), twin rotor (RK 662 to RK 1002), and four rotor (RK 1254 and RK 1404) configurations, with working widths from 3.4m to 14.0m and 540 PTO rpm across all models.

RK 341 DN Mounting: Cat I and II 3-point linkage mounting Width: 3.40m working width Transport: 1.42m transport width Tynes: 8 tyne arms per rotor Power: 23 HP power demand PTO: 540 PTO rpm
RK 361 DN Mounting: Cat I and II 3-point linkage mounting Width: 3.60m working width Transport: 1.55m transport width Tynes: 10 tyne arms per rotor Power: 27HP power demand PTO: 540 PTO rpm
RK 421 DN Mounting: Cat I and II 3-point linkage mounting Width: 4.20m working width Transport: 1.83m transport width Tynes: 12 tyne arms per rotor Power: 41 HP power demand PTO: 540 PTO rpm
RK 450 DN Mounting: Cat I and II 3-point linkage mounting Width: 4.50m working width Transport: 1.99m transport width Tynes: 12 tyne arms per rotor Power: 41 HP power demand PTO: 540 PTO rpm
RK 662 TRC Mounting: Cat I and II 3-point linkage mounting Width: 5.8 – 6.6m working width Transport: 2.75m transport width Tynes: 10 tyne arms per rotor x2 Power: 26 HP power demand PTO: 540 PTO rpm
RK 672 SD-TRC Mounting: Cat I and II 3-point linkage mounting Width: 5.8 - 6.7m working width Transport: 2.65m transport width Tynes: 12 tyne arms per rotor x2 Power: 26 HP power demand PTO: 540 PTO rpm
RK 702 SDX-TR Mounting: Drawbar mounting Width: 6.3 - 7.0m working width Transport: 2.3m transport width Tynes: 12 tyne arms per rotor x2 Power: 45 HP power demand PTO: 540 PTO rpm
RK 772 SD-TRC Mounting: Cat I and II 3-point linkage mounting Width: 6.6 - 7.7m working width Transport: 3m transport width Tynes: 12 tyne arms per rotor x2 Power: 41 HP power demand PTO: 540 PTO rpm
RK 802 TRC PRO Mounting: Cat I and II 3-point linkage mounting Width: 7.2 – 8.0m working width Transport: 2.98m transport width Tynes: 12 tyne arms per rotor x2 Power: 48 HP  power demand PTO: 540 PTO rpm
RK 842 SD-TRC PRO Mounting: Cat II 3-point linkage mounting Width: 7.8 - 8.4m working width Transport: 2.8m transport width Tynes: 13 tyne arms per rotor x2 Power: 60 HP  power demand PTO: 540 PTO rpm
RK 1002 TRC Mounting: Cat II 3-point linkage mounting Width: 8.8 – 10m working width Transport: 2.87m transport width Tynes: 15 tyne arms per rotor x2 Power: 70 HP power demand p PTO: 540 PTO rpm
RK 1254 TRC Mounting: Cat II 3-point linkage mounting Width: 12.5m working width Transport: 2.98m transport width Tynes: 12 tyne arms per rotor x4 Power: 80 HP power demand PTO: 540 PTO rpm
RK 1404 TRC PRO Mounting: Cat II 3-point linkage mounting Width: 11.5 – 14.0m working width Transport: 2.99m transport width Tynes: 13 tyne arms per rotor x4 Power: 130 power demand hp PTO: 540 PTO rpm
